產品介紹：
用途
本產品是冶金、熱工、石油、化工、天然氣、煤油等特殊環境中，需要防火性能的各種電氣裝置中所需用的電線電纜 .
Usage:
This product is applied in metallurgy, thermal, oil, chemical, natural gas, kerosene and other special circumstances, requires the fire performance of electric wires and cables required for the device.

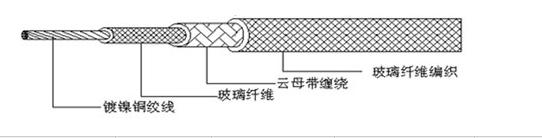

云母玻纖復合型高溫電線
MICA glass fiber composite high temperature wire
型號：type
NG350 鎳芯耐溫350℃玻纖云母復合層絕緣高溫軟電纜
Nickel resistance temperature of 350 ° c fiberglass MICA composite insulating flexible high temperature cable
NG500 鎳芯耐溫500℃玻纖云母復合層絕緣高溫軟電纜
Nickel resistance temperature of 500 ° c fiberglass MICA composite insulating flexible high temperature cable
NG1000 鎳芯耐溫1000℃玻纖云母復合層絕緣高溫軟電纜
Nickel-core 1000 ℃ high temperature MICA composite fiberglass insulation flexible cables
使用特性：
額定電壓：300/500V
耐溫等級：分別為350℃、500℃、1000℃
敷設方式：固定敷設
耐腐蝕、不燃、有自熄性、不吸水，燃燒無毒
Usage features:
Related voltage:300/500V
Temperature grade:350℃、500℃、1000℃
Install method:fixed installation
Corrosion resistance, non-combustible, self-extinguishing, not bibulous, non-toxic combustion
|
標稱截面 Nominal section area |
導體結構 Number/ cable diameter |
絕緣厚度 Insulation thickness |
外徑控制 Outer diameter control |
20 ℃ 時導體直流電阻 Conductor AC resistance at 20 ℃ |
包裝長度 Packing length |
|
0.5 |
7 × 0.30 |
0.5 |
2.3 ± 0.3 |
40.8 |
200 |
|
0.75 |
11 × 0.30 |
0.5 |
2.5 ± 0.3 |
24.3 |
200 |
|
1 |
14 × 0.30 |
0.5 |
2.6 ± 0.3 |
20.0 |
200 |
|
1.5 |
21 × 0.30 |
0.5 |
2.9 ± 0.3 |
12.6 |
100 |
|
2 |
28 × 0.30 |
0.6 |
3.3 ± 0.5 |
9.84 |
100 |
|
2.5 |
35 × 0.30 |
0.6 |
3.6 ± 0.5 |
7.37 |
100 |
|
4 |
56 × 0.30 |
0.8 |
4.7 ± 0.5 |
4.83 |
100 |
|
6 |
84 × 0.30 |
0.8 |
5.5 ± 0.5 |
3.26 |
100 |
|
10 |
84 × 0.40 |
0.8 |
6.6 ± 0.5 |
1.80 |
100 |
|
16 |
228 × 0.30 |
0.8 |
7.8 ± 0.5 |
1.31 |
100 |
|
25 |
361 × 0.30 |
0.8 |
9.5 ± 0.5 |
0.758 |
100 |
|
35 |
494 × 0.30 |
1.0 |
11.2 ± 1.0 |
0.548 |
100 |
|
50 |
703 × 0.30 |
1.2 |
13.2 ± 1.0 |
0.384 |
100 |
|
70 |
988 × 0.30 |
1.2 |
15.4 ± 1.0 |
0.289 |
100 |
|
95 |
760 × 0.40 |
1.2 |
17.4 ± 1.0 |
0.205 |
100 |
